Diagonal Ploughs

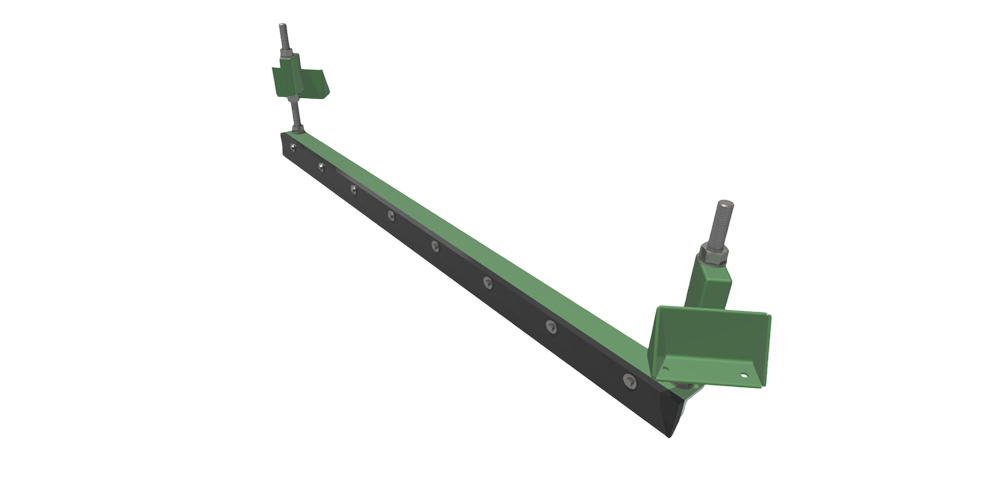

The BBCP Diagonal Plough is designed to be positioned on a flat, stable section of belt, in close proximity to a tail pulley, upper counterweight bend pulley, or anywhere that spillage on the return side of the belt needs to be removed. It is typically referred to as a return belt cleaner, as it operates on the return side of the belt. The Diagonal Plough comprises a pair of mounting brackets with mounting shafts, the plough frame and a bolt-on poly blade. The blade is 100mm high with 50mm of usable blade.
Although BBCP Diagonal Ploughs can handle reversing belt applications, they will not work well in a reversing application. (A BBCP Reversal Plough can handle reversing belt applications.)In some applications, large materials may be required to be handled by the plough. In such circumstances, a Stone Guard can be added to the frame. For complicated applications contact Belle Banne Conveyor Products for more information.
Return belt cleaners significantly reduce the amount of material, that has spilled onto the return belt, from building up on the tail pulley (or other pulleys at similar risk). They also provide protection from foreign objects (e.g. failed rollers) travelling through the pulley and damaging the belt and pulley lagging.
These issues contribute to unwanted plant downtime, resulting in increased costs. Installation of appropriate return belt cleaners will minimise these issues.
Features
- Diagonal blade design efficiently diverts carryback material away from the tail pulley.
- Protects tail pulley and return belt by preventing material build-up and belt slippage.
- Heavy-duty steel construction ensures reliable performance in harsh industrial environments.
- Durable wear-resistant blade provides long service life with consistent cleaning efficiency.
- Easy installation and adjustment allows quick maintenance with minimal conveyor downtime.
