Precision Belt Tracking
Fe-Trac Carrying
FE-Trac carry trackers are engineered and fabricated to exceed industry standards and/or customer specifications. Manufacturing techniques include CNC laser cutters and robotic welding. The combination of high-tech manufacturing equipment, IS 9595 SP welding and our high-quality management/assurance systems ensures all carry trackers set a benchmark for tolerance and quality levels.

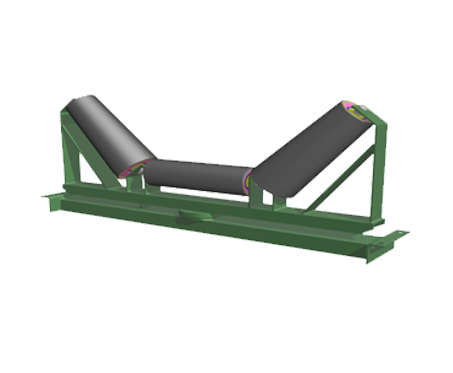

FE-CORP carry trackers are designed to provide belt tracking on the carry side of the belt, without the use of servo rollers, which are a major contributor to belt edge damage when used on carry-side belt trackers. The conical design of the wing rollers creates differential roller face speeds that pivot the frame and steer the belt back towards the conveyor centreline. The carry tracker has a compact design, is maintenance-free, easy to install, and is suitable for single or reversing belts.
FE-CORP carry trackers are supplied galvanised as standard, with powder coated frames available if required. They are available to suit belt widths from 450mm up to 2400mm and can be designed and supplied to suit any belt width or roller configuration. Contact us for more information.
Reliable Return Belt Tracking
Fe-Trac Return
Fe-Corp flat return trackers are engineered and fabricated to minimum industry or customer specifications and standards. Manufacturing techniques include CNC laser cutters and robotic welding. The combination of high-tech manufacturing equipment, IS 9595 SP welding and our high-quality management/assurance systems ensures all carry trackers set a benchmark for tolerance and quality levels.

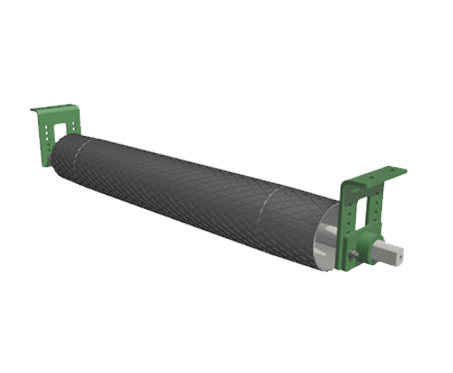

Fe-Corp flat return trackers are designed to provide belt tracking on the return side of the belt, without the use of servo rollers, which are a major contributor to belt edge damage. The internal unique tracking action causes the unit to immediately “kick in” as the belt starts to drift off centre. It does not rely on belt edge contact. The flat return tracker incorporates a rubber covered crown face which causes the drum to pivot about the perpendicular axis and this results in the tracking action always being on the same horizontal plane as the belt. The flat return tracker has a compact design, is maintenance-free, easy to install, and is suitable for single or reversing belts.
Advanced Return Belt Tracking
Fe-Corp Inverted Vee Trac
Fe-Corp inverted vee return Trac are engineered and fabricated to exceed industry standards and/or customer specifications. Manufacturing techniques include CNC laser cutters and robotic welding. The combination of high-tech manufacturing equipment, IS 9595 SP welding and our high-quality management/assurance systems ensures all carry trackers set a benchmark for tolerance and quality levels.

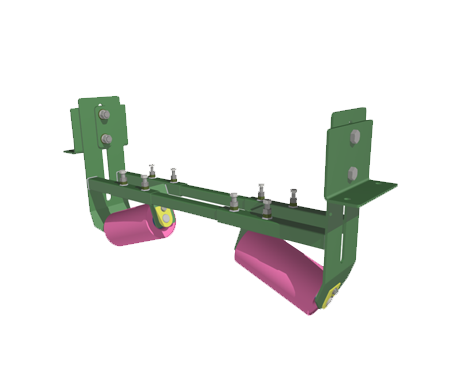

The Fe-Corp Inverted vee Trac is designed to be installed on the return side of the belt, adjacent to a pair of flat return idlers, on the approach to the tail pulley, counterweight bend pulley, or any other location where belt tracking is an issue. As the belt tracks off, the inverted wing rollers create increased belt tension at the belt edges, resulting in the belt returning to its neutral, centralised position. Because it works on belt tension, there is no steering element involved, so the coefficient of friction between the belt and the rollers, which is a function of many other tracking devices, is not an issue in wet or humid applications. It also has no detrimental effects on belt edges.
Each inverted vee return idler frame is telescopic to suit multiple belt widths and provide ease of installation. It is supplied standard with Fe-Corp rollers and can be supplied with steel rollers if desired. The Fe-Corp inverted vee return idler is available to suit the following belt widths:
- 450mm – 650mm
- 750mm – 1200mm
- 1350mm – 1600mm
- 1800mm – 2400mm
Fe-Corp inverted vee return idler frames are supplied galvanised as standard, with powder coated frames available if required. They are available to suit belt widths from 450mm up to 3000mm and can be designed and supplied to suit any belt width or roller configuration. A variety of idler frame types and sizes are held in stock. Contact us for more information.
